Just trying to get the handle off of this pump. Does this screw that is in the bottom of the handle secure the bolt that attaches the handle to the pump? I’m ASSuming so but don’t want to be stupid. I’ve got it laid down and soaking the area in AeriKroil the best I can to try to get it loose.
Last edited by Daveb; Thu Apr 17 2025 10:58 AM.
|
|
|
Please - NO offers to Buy or Sell in this forum category
Statements such as, "I'm thinking about selling this." are considered an offer to sell.
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |

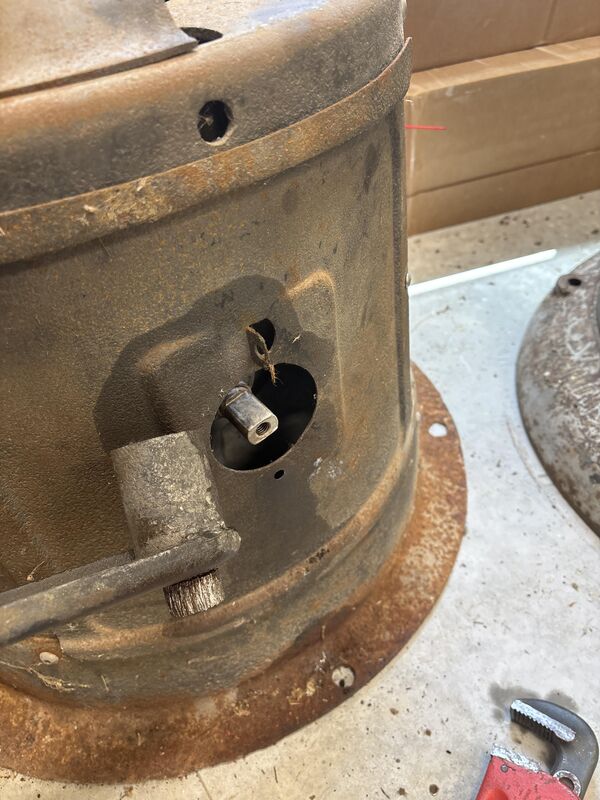

Just to clarify if my question was misleading, but I'm referring to the small slotted screw that is visible in the upper left photo. Not the knurled bolt that goes through the handle to the pump shaft. Apologies for not being clear.
|
|
|
|
|
Joined: Feb 2011
Posts: 212 Likes: 5
Petro Enthusiast
|
|
Petro Enthusiast
Joined: Feb 2011
Posts: 212 Likes: 5 |
|
|
|
|
|
Joined: Feb 2011
Posts: 212 Likes: 5
Petro Enthusiast
|
|
Petro Enthusiast
Joined: Feb 2011
Posts: 212 Likes: 5 |

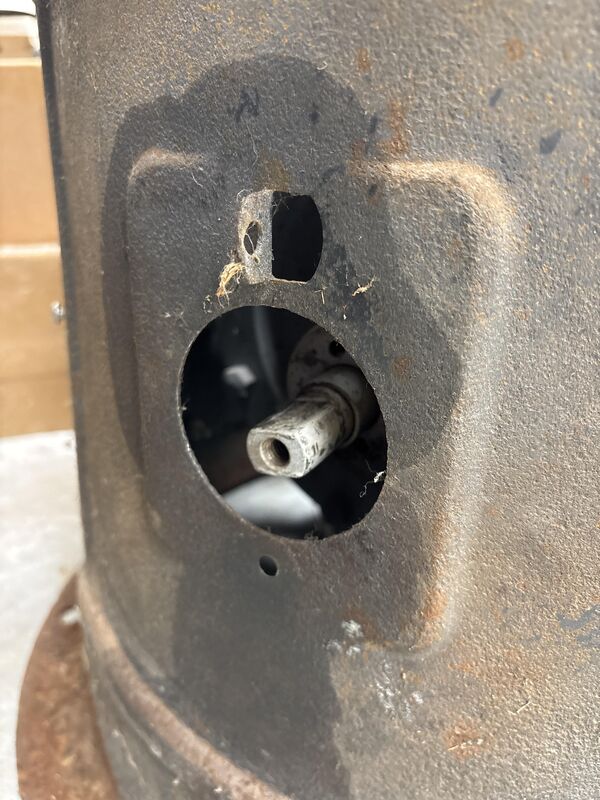

And maybe these pictures of a handle I have will help. I know there’s several different configurations of Fry handle attachments
|
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |
Thanks so much for both the link and the photos! That last picture in the link is what I'm looking at also. I've drilled out the set screw and am further soaking the bolt in AeroKroil to see if I can get it loose before I have to break out the big heater. I have reason to believe the bolt is loose in the pump shaft, but frozen solid to the handle.
Last edited by Daveb; Sat Apr 19 2025 02:54 PM.
|
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |
|
|
|
|
|
Joined: Feb 2011
Posts: 212 Likes: 5
Petro Enthusiast
|
|
Petro Enthusiast
Joined: Feb 2011
Posts: 212 Likes: 5 |
Good job! So what size is the bolt that threaded into the end of the shaft?
|
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |

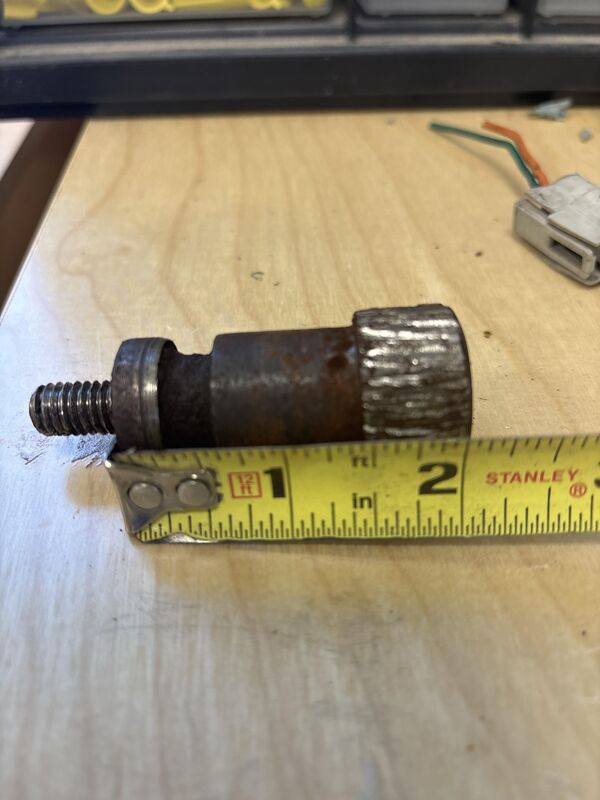

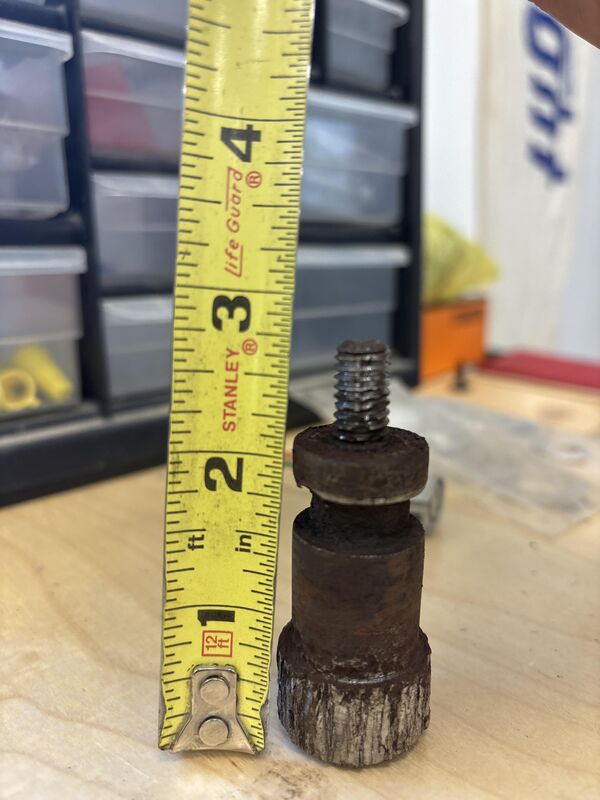

The thread is 3/8-16. The overall length is 2.75” with 5/8” thread protruding. In that picture of your handle, I’m wondering if that is a bushing in it that is meant to replace the original style bolt when used with a regular bolt?
|
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |
Also, in your handle, is the retaining screw size 1/4-20 or 5/16-18?
|
|
|
|
|
Joined: Feb 2011
Posts: 212 Likes: 5
Petro Enthusiast
|
|
Petro Enthusiast
Joined: Feb 2011
Posts: 212 Likes: 5 |
Thanks for the pics, maybe I need to put some kroil on mine! The set screw is 3/8 16 and yes it appears to be a bushing w a 3/8 hole through it. Looks like they cut it to length with a hacksaw. I tapped on it and it feels like it’s pressed(or rusted in) as it didn’t want to move.
|
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |
Kroil is definitely the bomb! Just give it time to do it’s job.
I visited with a local machine shop today to see if I can get a couple made. I’m fairly well convinced it would fit my 87 Tall Ten as well.
|
|
|
|
|
Joined: Dec 2004
Posts: 947 Likes: 5
Petro Enthusiast
|
|
OP
Petro Enthusiast
Joined: Dec 2004
Posts: 947 Likes: 5 |

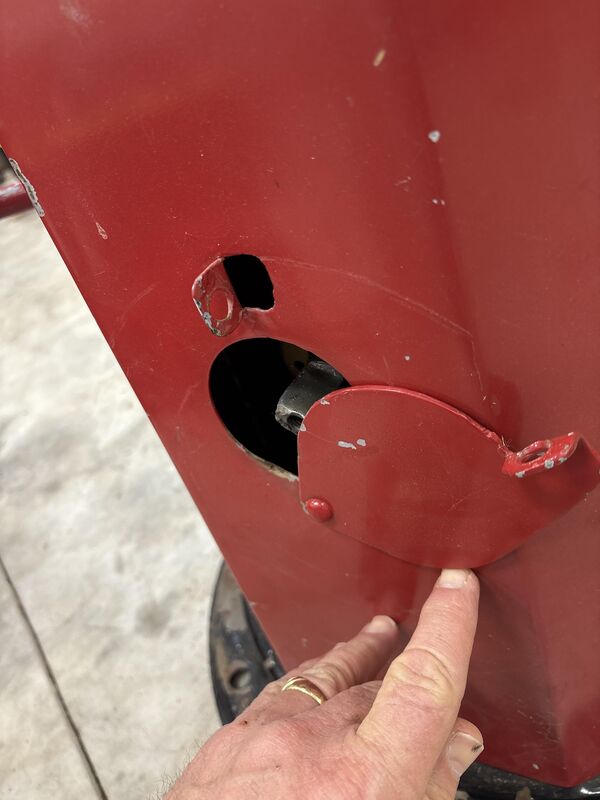

This is the door in the 87 that would be locked up after the handle was removed. It looks like the Fry 17 may have had the same thing?
|
|
|
|
|
|
|
